WEET WMS BP Axial Non polar Aluminum Electrolytic Capacitors for Audio and Amplifier System

PDF Download

Features

WEET WMS BP Axial Non polar Aluminum Electrolytic Capacitors for Audio and Amplifier System
High-quality crossover non-polar aluminum electrolytic capacitors
Low Dissipation Factor MAX 10 % at 1KHz,Bi-Polarized,105℃ 1000 hours

Detailed Specifications

Operating Temperature: -40℃~+105℃
Rated Voltage: 50V, 100V.DC
Leakage Current: MAX. 0.03CV + 3μA After 5 minutes application of rated working voltage
Capacitance Range: 1uF ~ 470uF
Capacitance Tolerance: ±10%
Dissipation Factor: MAX 10% at 1KHz (Other Dissipation Factor 3%, 4%,  5%, 6%, 7%, 8%, 9%, 12% are available on request)

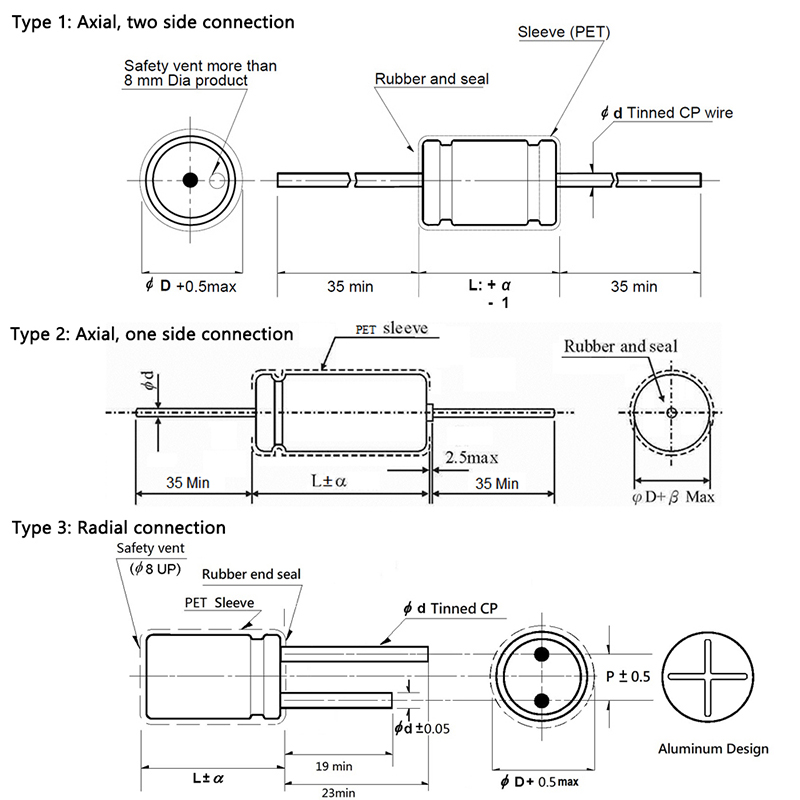

Product Drawing

WEET-WMS-Drawing

Main Applications

Specially produced for Cross-Over Networks with high fidelity audio system.Product mainly used in Audio Converters and Dividers (partials), Audio amp, Automotive Electronics Products, speaker and so on
