WEET WPA SMD Polymer Aluminum Solid Electrolytic Capacitors Low ESR

PDF Download

Features

WEET WPA SMD Polymer Aluminum Solid Electrolytic Capacitors Low ESR
Low ESR Series, High Ripple Current, miniaturized
SMD, lead free reflow soldering condition at 250℃ peak correspondence

Detailed Specifications

Operating Temperature: -55°C~ +105°C
Rated Voltage: 2.5V ~ 100V.DC
Leakage Current(+20℃, max) : ≤0.2CV (μA, after 2 minutes)
Capacitance Range: 10μF ~ 2200μF
Capacitance Tolerance: ±20% at 120Hz, 20°C

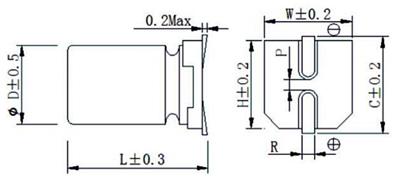

Product Drawing

WEET-WPA-Drawing

Main Applications

Applicable to DC/DC converters and AC/DC converters, communication power supply, set-top boxes, router, TV, voltage regulator, mobile phone adapter (mobile phone charger), computer motherboard, graphics card, power supplies, CPU’s, Decoupling circuits and LCD Monitors.
