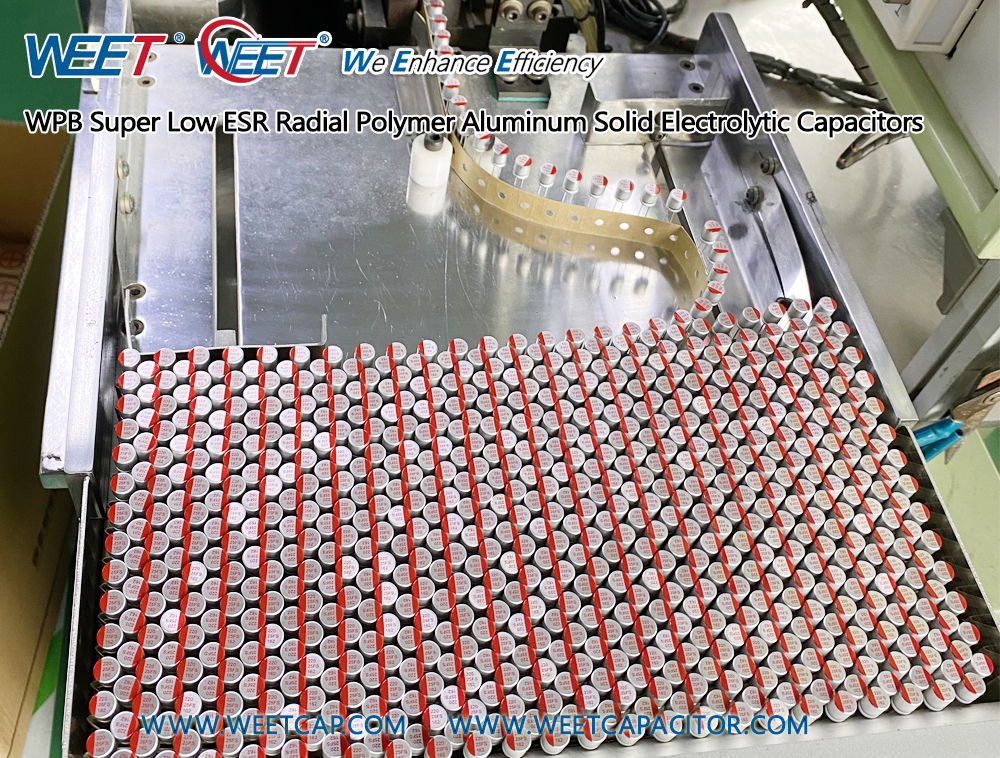

WEET WPB Super Low ESR Radial Polymer Aluminum Solid Electrolytic Capacitors

PDF Download

Features

WEET WPB Super Low ESR Radial Polymer Aluminum Solid Electrolytic Capacitors
Standard Series. Load life of 2000 hours at 105°C.
Large permissible ripple current,Low ESR at high frequency range

Detailed Specifications

Operating Temperature: -55°C~ +105°C
Rated Voltage: 2.5V ~25V.DC
Leakage Current(+20℃, max) : ≤0.2CV (μA, after 2 minutes)
Capacitance Range: 68μF ~ 2200μF
Capacitance Tolerance: ±20% at 120Hz, 20°C

Product Drawing

WEET-WPB-Drawing

Main Applications

Applicable to DC/DC converters and AC/DC converters, communication power supply, set-top boxes, router, TV, voltage regulator, mobile phone adapter (mobile phone charger), computer motherboard, graphics card, power supplies, CPU’s, Decoupling circuits and LCD Monitors.
