WEET WEA CD293 2000H at 85C Snap in Aluminum Electrolytic Capacitors For Speaker Network

PDF Download

Features

WEET WEA CD293 2000H at 85C Snap in Aluminum Electrolytic Capacitors For Speaker Network
High ripple current, Smaller size, PCB Mounting
Load life of 2000 hours at 85℃


Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Operating Temperature: 10V~400V: -40℃+85℃, 450V~500V: -25℃~+85℃
Rated Voltage: 10V - 500V.DC
Capacitance Range: 47uF - 68000uF
Capacitance Tolerance: ±20% at 120Hz, 20°C
Leakage Current: 0.01CV or 1.5mA whichever is smaller(at 20℃,after 5 minutes)

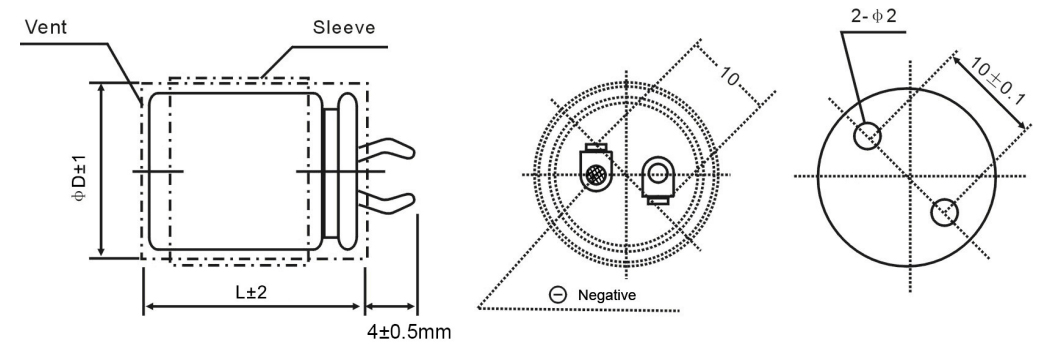

Product Drawing

WEET-WEA-Drawing.

Main Applications

CD293 capacitors (cow horn aluminum electrolytic capacitors) are widely used in industrial electronic equipment, power systems, and high ripple scenarios. The specific application circuits are as follows:
Industrial power supply and frequency conversion equipment: used for industrial grade frequency converters, servo control systems, switch power supplies, etc., providing stable filtering and energy storage functions.
Industrial control and electronic equipment: suitable for scenarios such as CNC machine tools, inverters, communication power supplies, etc., with high ripple current processing capability and long lifespan characteristics.  ‌
Energy storage and automotive electronics: applied to energy storage welding machines, electric vehicle electronic systems, and high-power power supply equipment, supporting high current surge and temperature stability.  ‌
Computers and peripherals: commonly found in industrial computer systems, server power modules, and high-precision electronic devices, ensuring signal stability and anti-interference capabilities.  ‌
