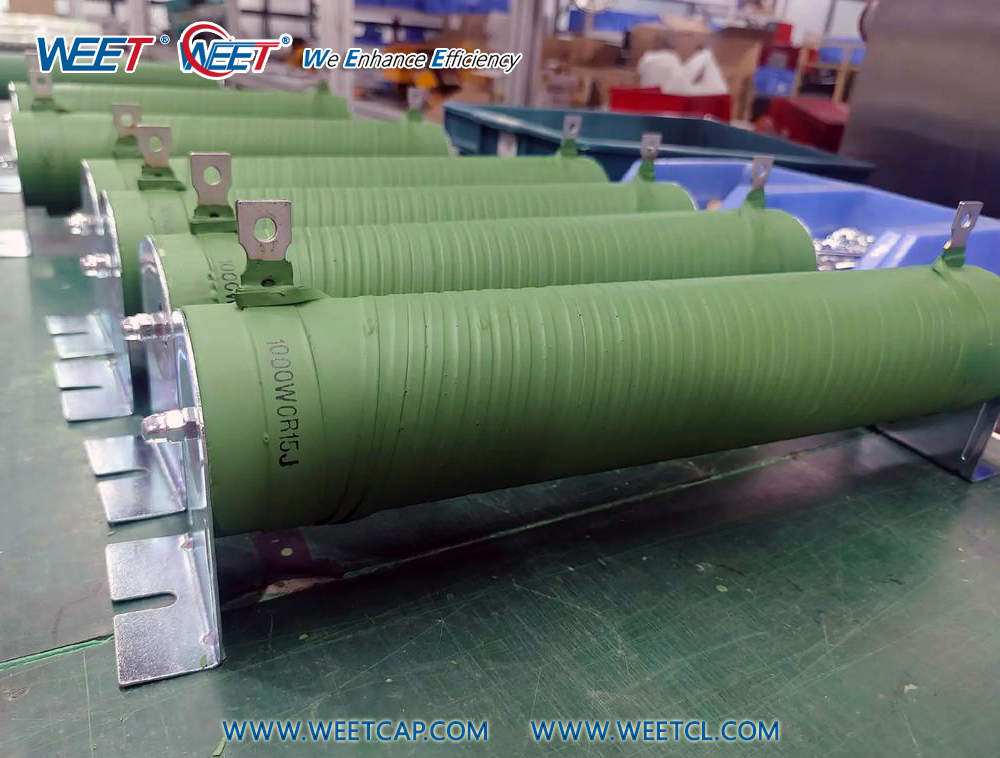

WEET DR Non Flammable WireWound Power Resistor

PDF Download

Features

WEET DR Non Flammable WireWound Power Resistor
Strong terminals(4.5-20KG/30SEC)
Resistance value unchanged after long term use
Multi-terminal types or adjustable types available
Resistance temp . coeff:±400PPM/℃, ±260PPM/℃, ±100PPM/℃
Short time over ± (2% ±0.05Ω )

Insulation resistance 500V 20MΩ MIN

Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Rated Dimensions(mm) Resistance
Watts A B C D E F G H I J K L M N O Range (Ω)
10W 45 12 6 15 4 54 2 9 3 62 28 1.0 6 10 1 -5KΩ
20W 60 17 8 22 5 78 2 12 4 90 36 1.0 6 16 1 -10KΩ
30W 80 17 8 22 5 100 2 12 4 112 36 1.0 6 16 1 -15KΩ
40W 110 17 8 22 5 128 2 12 4 140 36 1.0 6 16 1 -20KΩ
50W 110 25 16 30 8 150 5 18 6 166 58 1.2 6 27 0.1-25KΩ
60W 90 28 18 32 8 130 5 19 6 146 60 1.2 6 27 0.1-30KΩ
80W 110 28 18 32 8 150 5 19 6 166 58 1.2 6 27 0.1-40KΩ
100W 140 28 18 32 8 180 5 19 6 196 60 1.2 6 27 0.1-50KΩ
120W 160 28 18 32 8 200 5 19 6 216 60 1.2 6 27 0.1-60KΩ
150W 195 28 18 32 8 235 5 19 6 251 60 1.2 6 27 0.3-75KΩ
160W 185 35 24 36 10 225 5 19 8 245 76 1.6 6 34 0.3-80KΩ
200W 210 35 24 36 10 250 5 19 8 274 76 1.6 6 34 0.3-100KΩ
250W 210 40 25 38 12 250 5 20 8 274 78 1.6 6 34 0.5-125KΩ
300W 260 40 25 38 12 300 5 20 8 320 78 1.6 6 34 0.5-150KΩ
400W 330 40 35 38 12 370 5 20 8 395 78 1.6 6 34 0.5-200KΩ
500W 330 50 35 50 12 380 6 25 9 400 100 1.6 6 40 0.5-250KΩ
600W 400 50 35 50 12 450 6 25 9 470 100 1.6 8 40 0.8-300KΩ
700W 460 50 35 50 12 510 6 25 9 530 100 1.6 8 40 0.8-350KΩ
800W 460 60 40 55 15 515 6 30 10 535 110 1.6 10 50 0.8-400KΩ
1000W 540 60 40 55 15 595 6 30 10 615 110 1.6 10 50 1-500KΩ
1300W 650 65 42 62 15 702 6 30 10 722 115 1.6 10 50 1-600KΩ

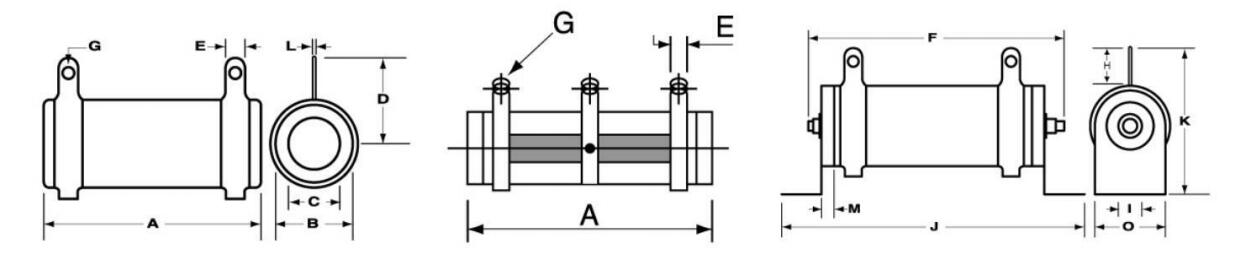

Product Drawing

Main Applications

The resistors we produce are widely applied in Automotive Industry, Power Supply Industry,LED Lighting, Home Appliances, Communication Equipment, electronic toys and other consumer goods,
Medical Equipment Industry, communication equipment, computers, automotive electronics, high-frequency and microwave circuits,automotive electronics, power circuits, converters, regulators and other fields
