WEET WFX X1 Metallized Polypropylene Film Capacitor AC Class 300VAC 440VAC

PDF Download

Features

WEET WFX X1 Metallized Polypropylene Film Capacitor AC Class 300VAC 440VAC
  • This specifications cover the requirements of WEET Metallized Polypropylene
    Film AC Capacitor (Interference Suppressors Class-X1)
  • Reliable self-healing
  • According to RoHS 2011/65/EU
  • High degree of interference suppression due to good attenuation and low ESR


Detailed Specifications

Operating Temperature -55℃~ +105℃
Rated Voltage 300VAC, 440VAC
Capacitance Range 0.0022 ~ 4.7μF
Capacitance Tolerance K: (±10%), M: (±20%)
Insulation Resistance >=15,000 M ohm (C<=0.33μF)
>=5,000 M ohm   (C>0.33μF)
Dissipation Factor 0.001 (0.1%)max. at 1KHz

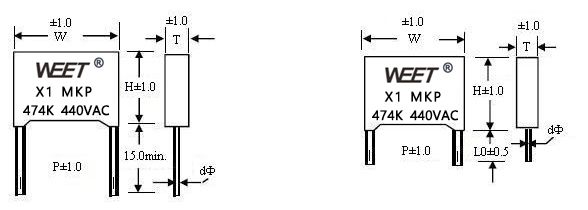

Product Drawing

WEET-WFX-Drawing

Main Applications

Typical applications: Interference suppression and «across-the-line» applications.

Suitable for use in situations where failure of the capacitor could lead to danger of electric shock
