WEET WFL CBB81B MKP Box Type High Voltage Metallized Polypropylene Film Capacitor

PDF Download

Features

WEET WFL CBB81B MKP Box Type High Voltage Metallized Polypropylene Film Capacitor
Metallized structure, widely used in high voltage, high frequency and pulse circuit
Low loss and small inherent temperature rise
Negative temperature coefficient of capacitance

Excellent active and passive flame resistant abilities


Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Reference Standard GB/T 10188 -88
Climatic Category 40/105/21
Rated Temperature 105℃
Operating Temperature Range -40℃~105℃(+85℃ to +105℃:decreasing factor 1.25%per℃ for VR (dc)
Rated Voltage 1000VDC/1250VDC, 1400VDC/1600VDC, 2000VDC
Capacitance Range 0.00022µF ~ 3.9µF
Capacitance Tolerance ±2%(G), ±3%(E), ±5%(J), ±10%(K),±20%(M)
Voltage Proof 1.6UR(5s)
Dissipation Factor ≤0.1%MAX(25℃,1KHZ、1V)
Insulation Resistance ≥50000MΩ, (25℃, 100V,1min)

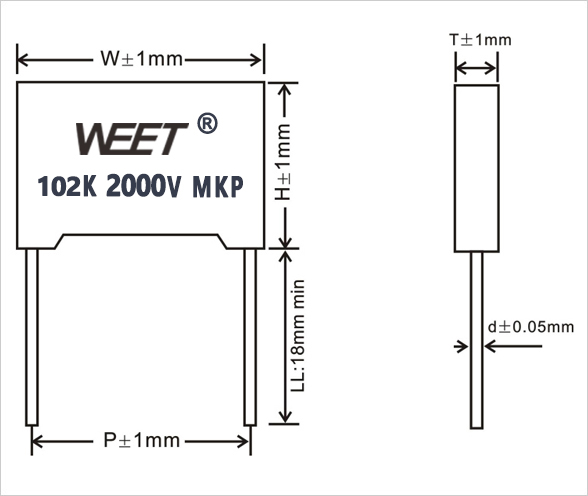

Product Drawing

WEET-WFL-Drawing

Main Applications

The internal series structure of CBB81B makes it perform well in terms of voltage and overcurrent. Compared with CBB81 capacitor,

CBB81B capacitor has no difference in application and can be used in high-frequency, DC, AC, and pulse high current situations, such as lamps, power supplies, displays, and color TV reverse circuit. MMKP82 capacitor can also be used as an alternative to CBB81B capacitor.

MMKP82 is a double-sided metalized polypropylene film boxed capacitor with a more compact size and superior performance. If you think the size of CBB81B capacitor is too large, you may consider using MMKP82 double-sided metalized capacitor.
