WEET WUB 5.5V 7.5V Combined Type Super Capacitors

PDF Download

Features

WEET WUB 5.5V 7.5V Combined Type Super Capacitors

This product uses a cylindrical capacitor shape. The inside is a winding structure, the positive and negative electrode sheets are separated by a diaphragm,

and are immersed in electrolyte components; the aluminum shell is sealed with a rubber plug, and the lead-out method is lead-out, and the lead-out pole is on the same side of the product.

Detailed Specifications

Rated voltage VR

5.5V

7.5V

Surge voltage

5.8V

7.9V

Capacity range

0.1F~8.0F

0.33F~8.0F

Operating temperature range

-40~ +70

-40~ +70

Product life

Normal temperature cycle life: 25 ° C, VR to 1/2 VR cycle 1 million times, capacity attenuation ≤ 30%, internal resistance change ≤ 4 times

High-temperature endurance life: 70 ° C, keep VR, 1000 hours. Capacity attenuation ≤ 30%, internal resistance change ≤ 3 times

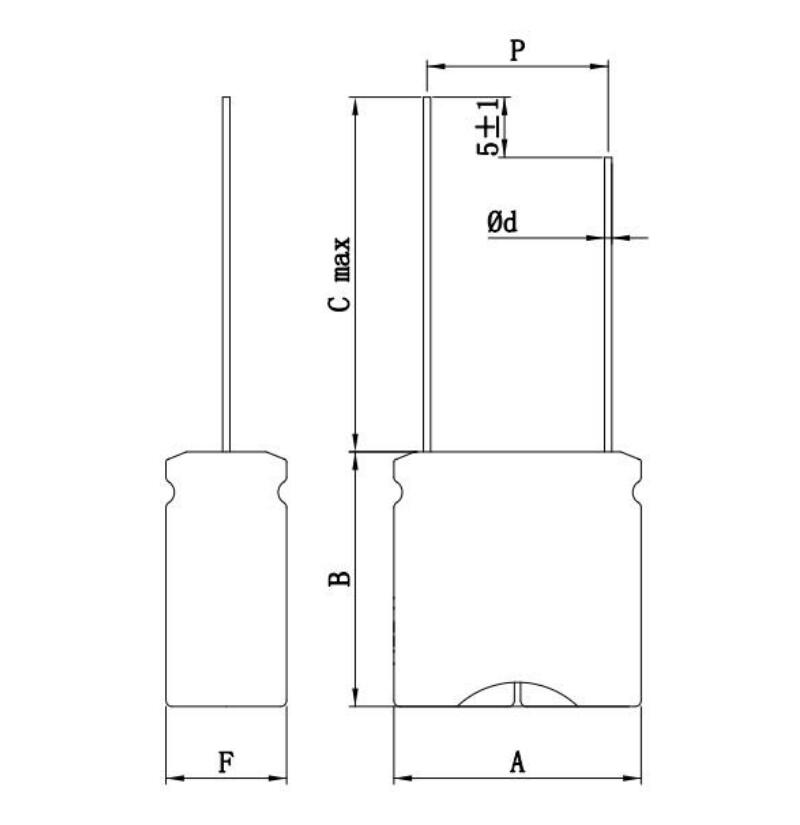

Product Drawing

Main Applications

Backup power: RAM, detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive
Energy storage: intelligent three meters, UPS, security equipment, communication equipment, flashlights, water meters, gas meters, taillights, small appliances.
High current operation: electrified railway, smart grid control, hybrid vehicle, wireless transmission.
High-power support: wind power, locomotive start, ignition, electric cars, etc.
