WEET WUE 2.7V 3V Single Entire Sealed Series Super Capacitors

PDF Download

Features

WEET WUE 2.7V 3V Single Entire Sealed Series Super Capacitors
High energy, high power series
The monomer of this product is based on the principle of a double layer capacitor, with activated carbon as the positive and negative electrodes internally. The two electrodes are separated by an electrolyte and a diaphragm, and aluminum.
The cover plate and sealing ring are sealed, and the outlet is on the same side of the product.

Detailed Specifications

Rated voltage VR

2.7V

3.0V

Surge voltage

2.85V

3.15V

Capacity range

300F, 350F, 400F, 500F,720F

1000F

Operating temperature range

-40~ +70℃

-40~ +65℃

Product life

Normal temperature cycle life25, 1 million cycles between VR and 1/2VR , Capacity attenuation30%, ESR change4 times.

High temperature endurance lifeMaximum temperature retention VR1000 hours.Capacity attenuation30%, ESR change4 times.

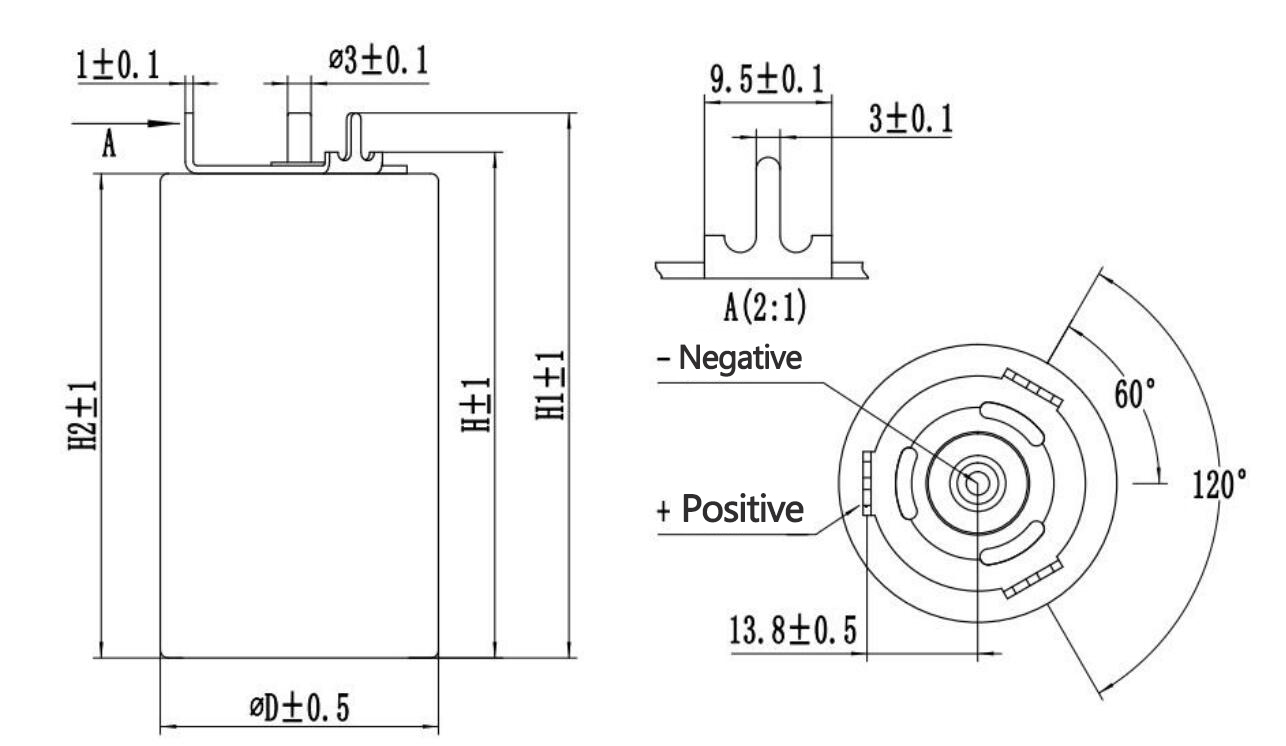

Product Drawing

Main Applications

PN

Capacity (F)

ESR mΩ

Product Sizemm

DC

AC 1kHz

Diameter

Height

Rated voltage: 2.7V

HP-2R7-J307UDJ32

300F

1.9

1.0

35

54.3

HP-2R7-J357UDJ33

350F

1.4

0.7

35

62.0

HP-2R7-J407UDJ33

400F

1.4

0.7

35

62.0

HP-2R7-J507UDJ45

500F

1.3

0.65

35

67.0

HP-2R7-J727UDJ99

720F

1.1

0.6

35

102.1

Rated voltage: 3.0V

HP-3R0-J108UDJ006

1000F

1.1

0.55

35

113.1
