WEET WMG 0.47uF 630V Across Solen Film Foil Polypropylene Capacitors

PDF Download

Features

WEET WMG 0.47uF 630V Across Solen Film Foil Polypropylene Capacitors
  • WEET WMG 630V MusiCaps are constructed using separate layers of premium foil and polypropylene films, rather than the vapor deposited metallized film used by most other manufacturers. Film-plus-foil construction requires more costly materials and result in MusiCaps being approximately 100% larger than typical metallized-film capacitors, yet the benefits are immediately discernible.
  • Top of the range pure aluminum foil capacitor. Very Low Dielectric absorption factor. Very Low Dissipation factor, Very Low ESR, Very Low Inductance
  • A luxury capacitor designed especially for modern high-end tweeters and mid-range drivers
  • Aluminum foil spliced to polypropylene insulation film. (a layer of pure Aluminum foil and a layer of PP film).Separate layers of polypropylene film & conductive foil deliver superiors clarity of reproduction that metalized capacitors can not.

Detailed Specifications

Passive flammability GB10191-88 IEC384-16
Operating temperature -55℃~+85℃
Capacitance range 0.01~0.47uF
Capacitance tolerance ±3%、±5% 1KHz
Rated voltage 630V.DC
Withstand voltage 1.6VR 5S
Dissipation factor ≤0.0005    1KHz
Insulate the electric resistance CR≤0.33μF, I.R≥15,000MΩ
CR>0.33μF,    I.R≥5,000S
Leads Diameter 0.8 Tinned Pure Copper Wire

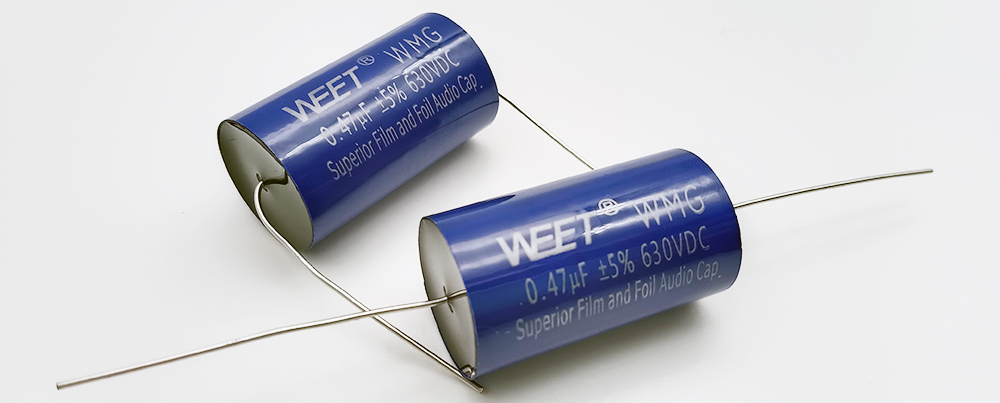

Product Picture

WEET WMG 0.47uF 630V Across Solen Film Foil Polypropylene Capacitors

Main Applications

WEET WMG 630V is specifically designed for use in amplifier sections of passive crossover networks. With extremely low ESR, inductance, and dielectric absorption, this premium pure aluminum foil capacitor will provide a surprisingly natural sound.

Cross Reference

WEET audio capacitors can replace ERSE, Mundorf - MCAP MKP, Jantzen Audio, Mallory, BENNIC, SCR / SOLEN, Auricap, INTERTECHNIK, Ampohm audio series.

WEET WMG 0.47uF 630V Across Solen Film Foil Polypropylene Capacitors
