WEET WCD Chip SMD 4VDC to 50VDC 0402 to 2225 MLCC Multilayer Ceramic Capacitors

PDF Download

Features

WEET WCD Chip SMD 4VDC to 50VDC 0402 to 2225 MLCC Multilayer Ceramic Capacitors
MLCC is a kind of multi-layer ceramic capacitor, which can also be referred to as chip capacitor, laminated capacitor, laminated capacitor, etc
MLCC has the advantages of small volume, large capacitance and low loss rate in high frequency use


Detailed Specifications

Operating Temperature： NPO (COG) X7R:-55℃~+125℃, Y5V (Z5U) -30℃~+85℃
Rated Voltage： 16 VDC, 25 VDC, 50 VDC, 63 VDC
Size Code： Tape and Reel (0402, 0603, 0805, 1206, 1210, 1812, 2220)
Capacitance Range： 0.5pF ~ 10uF
Capacitance Tolerance： ±0.1pF , ±0.25pF, ±0.5pF, ±5.0%, ±10%, ±20%, +80%-20%
Dielectric Material Type of Capacitor： NPO, X7R, X5R, Y5V

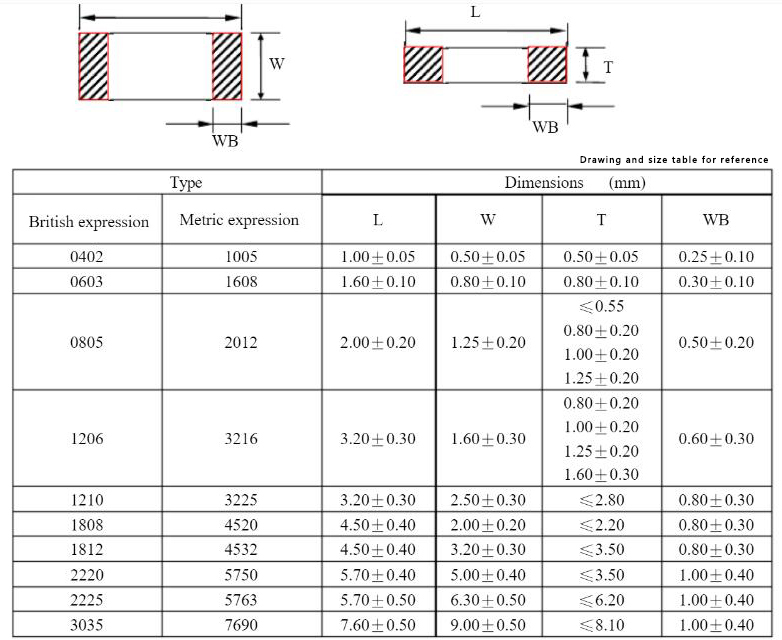

Product Drawing

Comparison of inch and metric dimensions of conventional chip capacitor
Generally, the chip capacitor refers to MLCC, that is, multilayer ceramic capacitors, also known as chip capacitors or chip capacitors. Conventional chip capacitors are divided into COG (NPO), X7R and Y5V according to the British standard,
Its pin package usually has the following 12 models: 0201，0402，0603，0805，1206，1210，1812，1825，2225， 3012、3035。

Among them, 0201，0402，0603，0805，1206 are chip capacitors with common package sizes, and the capacity range is generally 0.5pf ~ 1uF.
1210，1812，1825，2225，3012 and 3035 are large-size chip capacitors with a capacity range of 1uF ~ 100uF.

See the following table for the comparison of common chip capacitor package sizes between imperial and metric sizes:

WEET-WCD-Drawing


Main Applications

MLCC is widely used in 3C products including consumer electronics, communications, computers and other electronic industries
