WEET SQP Series Axial Cement Ceramic Resistor

PDF Download

Features

WEET SQP Series Axial Cement Ceramic Resistor
Cement Ceramic resistors are manufactured by winding the ceramic rods with metal alloy resistance wire and put it in a fireproof ceramic box then concrete with non-flammable and heat-resistant cement.
Excellent heat resistance, low temperature coefficient of resistance and linear change.
It can withstand short-term overload, low noise, and the resistance value has not changed over the years.
Good explosion-proof performance and protection.

Detailed Specifications

Power Rating 70℃ 1W & 2W 3W & 4W 5W 7W 10W 15W & 20W
3WS 5WS 7WS 10WS 15WS 25W - 50W
Series Number SQP
Operating Temp. Range -55℃~ +155℃
Max. Working Voltage 250V 350V 350V 500V 500V 500V
Max. Overload Voltage 500V 700V 700V 1000V 1000V 1000V
Dielectric Withstanding Voltage(AC) 500V 700V 700V 1000V 1000V 1000V
Value Range ±5% (Ceramic Core) 0.1Ω - 47Ω 0.5Ω - 990Ω 0.1Ω - 990Ω
Value Range ±5% (Metal Oxide Film) 50Ω - 100KΩ 1KΩ - 20KΩ 1KΩ - 20KΩ
Temp. Coefficient (PPM) ±300ppm/

Product Drawing

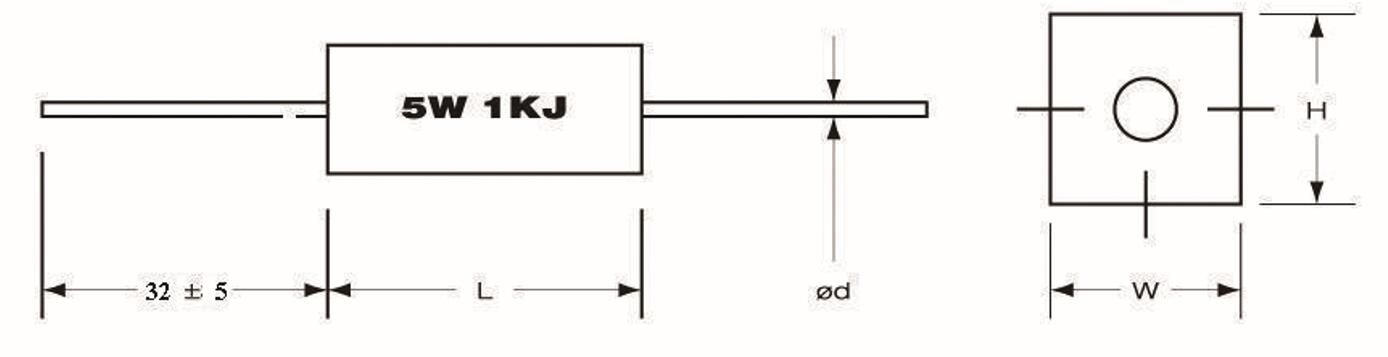

WEET-SQP-Drawing

Main Applications

WEET’s SQP Ceramic audio grade resistors are specially designed for applications requiring minimal samll board space, low head dissipation factor, and low cost.
These audiophile grade resistors are packaged in a nonflammable cement casing house and with an inorganic potting mix.
This combination provides resistance to the elements and high thermal conductivity.
With features like High Surge Capabilities and small sizes, the WEET cements wire wound resistor is perfect for all high power applications.
