WEET WTP-D Industrial Potentiometer Carbon Film 24mm Diameter

PDF Download

Features

WEET WTP-D Industrial Potentiometer Carbon Film 24mm Diameter
Rated Power: 2W

Total Resistance 470Ω-2MΩ Total Resistance Tolerance ±10%


Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Electrical Characteristics
Total Resistance 470Ω-2MΩ
Total Resistance Tolerance ±10%
Resistance Taper B (Linear)
Max. Operation Voltage AC 315V
Rated Power 2W
Rotation Noise ≤47mV
Insulation Resistance ≥100MΩ at DC
1000V
Residual Resistance ≤3Ω
Withstand Voltage 1 min at AC 1000V

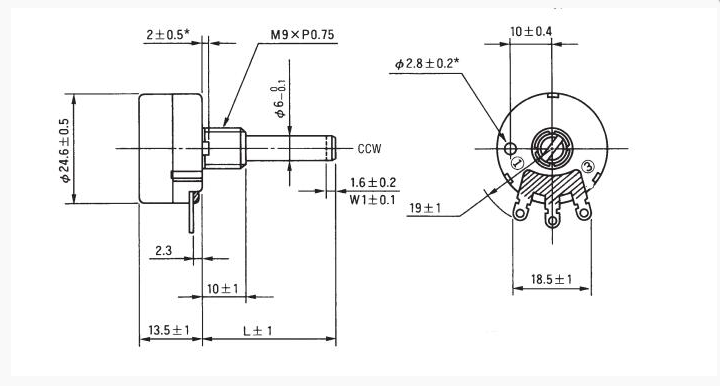

Product Drawing

WEET-WTP-D-Drawing
