WEET WTP-E Rotary Potentiometer Precision Conductive Plastic Potentiometer

PDF Download

Features

WEET WTP-E Rotary Potentiometer Precision Conductive Plastic Potentiometer
Rated Power: 2W
Resistance Range 1KΩ~10KΩ Resistance Tolerance  ±1%(precision)±15%(Standard)

Detailed Specifications

Electrical Characteristics
Standard Resistance Range 1KΩ~10KΩ
Resistance Tolerance ±1%precision
±15%Standard
Independent Linearity ±0.1%precision
±1%Standard
Electrical Travel 345° ±2%
(Customized angle is available)
Power Rating 2W(70°C )
Temperature Coefficient ±400p.p.m. /°C
Insulation Resistance  1000MΩ(500VD.C)
Dielectric Strength 1000V(AC.RMS)1min
Output Smoothness ≤±0.1%

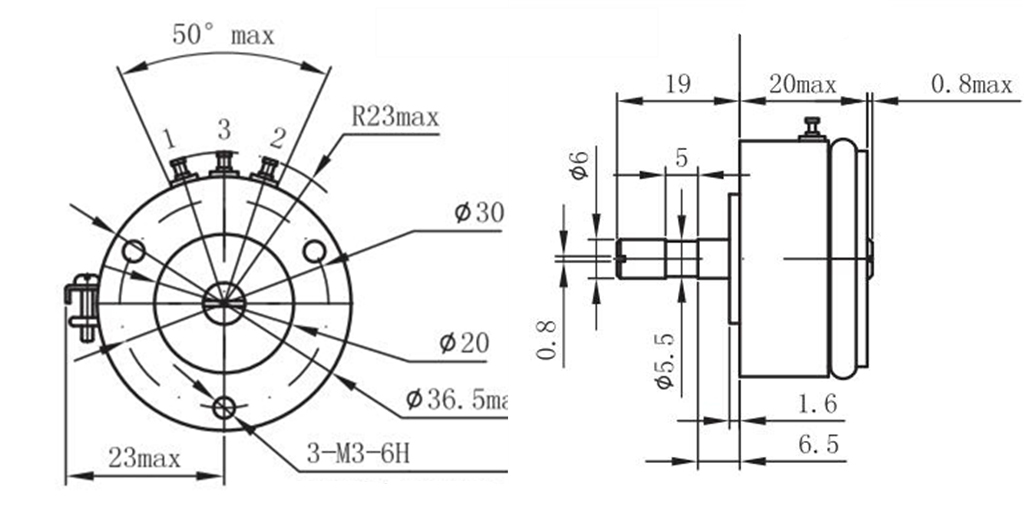

Product Drawing
