WEET WMW 100V 200V Pure Copper Foil and Polypropylene Film Capacitors

Features

Top of the range pure copper foil capacitor
Very Low Dielectric absorption factor. Very Low Dissipation factor, Very Low ESR, Very Low Inductance
Copper foil spliced to polypropylene insulation film. (a layer of pure copper foil and a layer of PP film).
Separate layers of polypropylene film & conductive foil deliver superiors clarity of reproduction that metalized capacitors can not.

Detailed Specifications

Passive flammability	GB10191-88 IEC384-16
Operating temperature	-55℃～+85℃
Capacitance range	0.1~10uF
Capacitance tolerance	±3%, ±5% 1KHz
Rated voltage	100V.DC, 250V.DC, 400V.DC, 630V.DC
Withstand voltage	1.6VR 5S
Dissipation factor	≤0.0005 1KHz
Insulate the electric resistance	CR≤0.33μF, I.R≥15,000MΩ
Insulate the electric resistance	CR>0.33μF, I.R≥5,000S
Leads Diameter	1.0 Pure Copper Wire

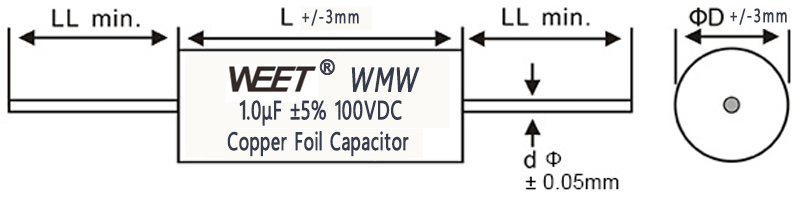

Product Drawing

WEET-WMW-Drawing

Main Applications

Designed specifically for passive crossovers (mainly tweeters).Copper foil has a noticeable positive impact on the“flavor" of the sound

WEET WMW Pure Copper Foil and Film Audio Capacitors in Tweeter Crossover Network Customer Test Review

Copper foil capacitors WMW create music with a great sense of realism, with a good balance between transparency and timbre.Excellent ratio of sound performance to cost !
Undoubtedly ,these will find your rightful place along with Jupiter, which , however are much more expensive. WEET Capacitors, Highly recommended !
--- From Alex Tsoupikov, Italy

Cross Reference

The WMW Pure Copper Cap is quite spatial with lots of air around the individual instruments. Very nice and coherent sounding with rich natural harmonics, all in all rather musical. Woodwind instruments come across with natural ease and brass instruments
sound bright and warm at the same time - very convincing.
The WMW Pure Copper Cap has a perfect balance between warmth and detail. The amount of detail and spatial information lets you hear the acoustics of the recording venue well.
In general, The The WMW Pure Copper Cap has a nice realism of tone, very convincing in the way it portrays vocals and acoustic instruments

SIZE TABLE (mm)

µF	*250V-ODL:mm**	*400V-ODL:mm**	*630V-ODL:mm**
0.1uF	15*35	16*35	18*35
0.22uF	19*35	20*35	24*35
0.33uF	22*35	23*35	20*55
0.47uF	25*35	26*35	23*55
0.68uF	20*55	21*55	27*55
0.82uF	21*55	23*55	29*55
1.0uF	23*55	25*55	32*55
2.2uF	33*55	36*55	46*55
3.3uF	39*55	44*55	56*55
4.7uF	46*55	52*55	56*70
5.6uF	51*55	47*70
6.8uF	55*55	52*70
8.2uF	51*70	57*70
10uF	56*70	63*70
