WEET WMJ Copper Tube and Metallized Polypropylene Film Music Capacitors

PDF Download

Features

WEET WMJ Copper Tube and Metallized Polypropylene Film Music Capacitors

Metallized polypropylene film as medium and electrode
External layer with pure copper tube and epoxy resin sealing
Markings are laser etched onto the surface.
Very Low Dissipation factor, Very Low ESR, Very Low Inductance
Used to the audio instruments, especially for Audio amplifiers.

Detailed Specifications

Passive flammability GB/T 14004-92 IEC384-6
Operating temperature -40℃ ~ +85℃
Capacitance range 0.047uF ~ 47uF
Capacitance tolerance J(±5%)
Rated voltage 250V,630V.DC
Withstand voltage 1.4VR 2S
Dissipation factor C<0.1uF       ≤0.0015 (10KHz)
0.1uF≤C≤1uF ≤0.0025 (10KHz)
C>1uF         ≤0.0010 (1KHz)
Insulate the electric resistance CR≤0.33μF, I.R≥15,000MΩ
CR>0.33μF, I.R≥5,000S
Leads Diameter 1.0 Tinned Pure Copper Wire

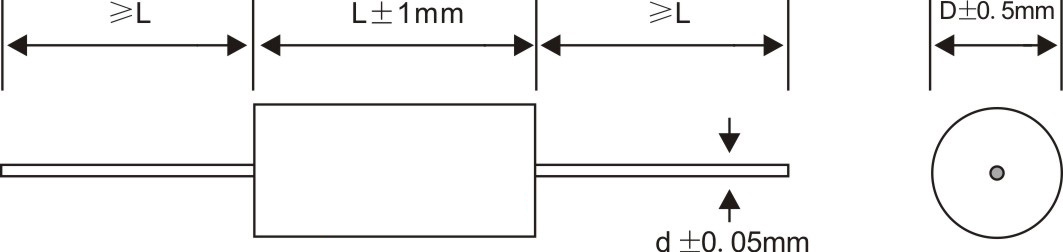

Product Drawing

WEET-WMJ-Drawing

Main Applications

WEET audio capacitors can replace ERSE, Mundorf - MCAP MKP,  Mallory, BENNIC, SCR / SOLEN, Auricap, INTERTECHNIK, Ampohm audio series.
