WEET WFE CBB21B MKP Box Type Metallized Polypropylene Film Capacitor

PDF Download

Features

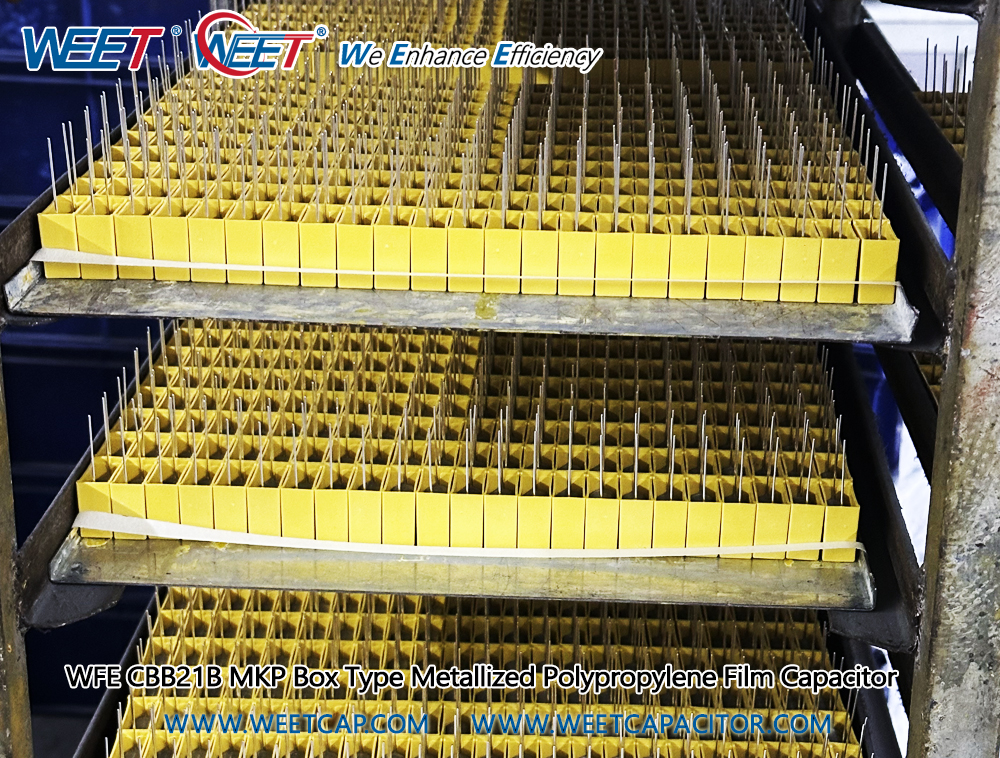

WEET WFE CBB21B MKP Box Type Metallized Polypropylene Film Capacitor
  • High reliability at high current stress.Self-healing properties.
  • Flame retardant plastic case and epoxy resin.Low losses, high dv / dt capability.
  • High moisture resistance.High stability of capacitance and long life.
  • Cut leads, Bulk, Ammo Tape Package,Long leads are available.

Detailed Specifications

Operating Temperature: -40°C~ +85°C
Rated Voltage: 250V, 400V, 630V.DC
Capacitance Range: 0.0047 ~ 3.9μF
Capacitance Tolerance: ±5%, ±10%
Insulation Resistance: C≦0.33μf ; IR≥50000MOhm
C>0.33μF ; IR≥15000MOhm
Dissipation Factor: 0.1% max. at 1KHz, 20°C
Dielectric Strength: 160% of rated voltage for 60 sec.

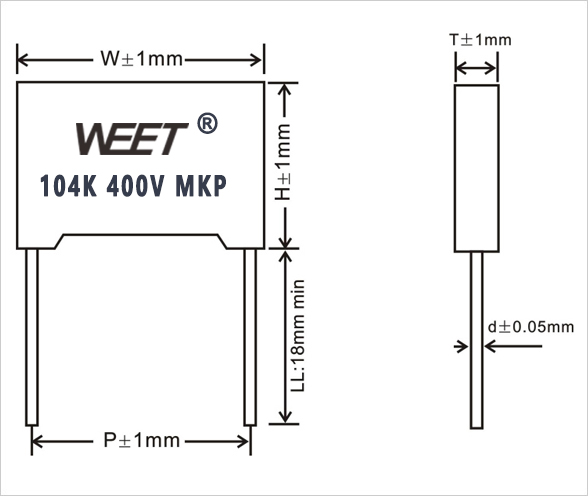

Product Drawing

WEET-WFE-Drawing
