WEET WFG CL23B Mini Box Metallized Polyester Film Capacitor

PDF Download

Features

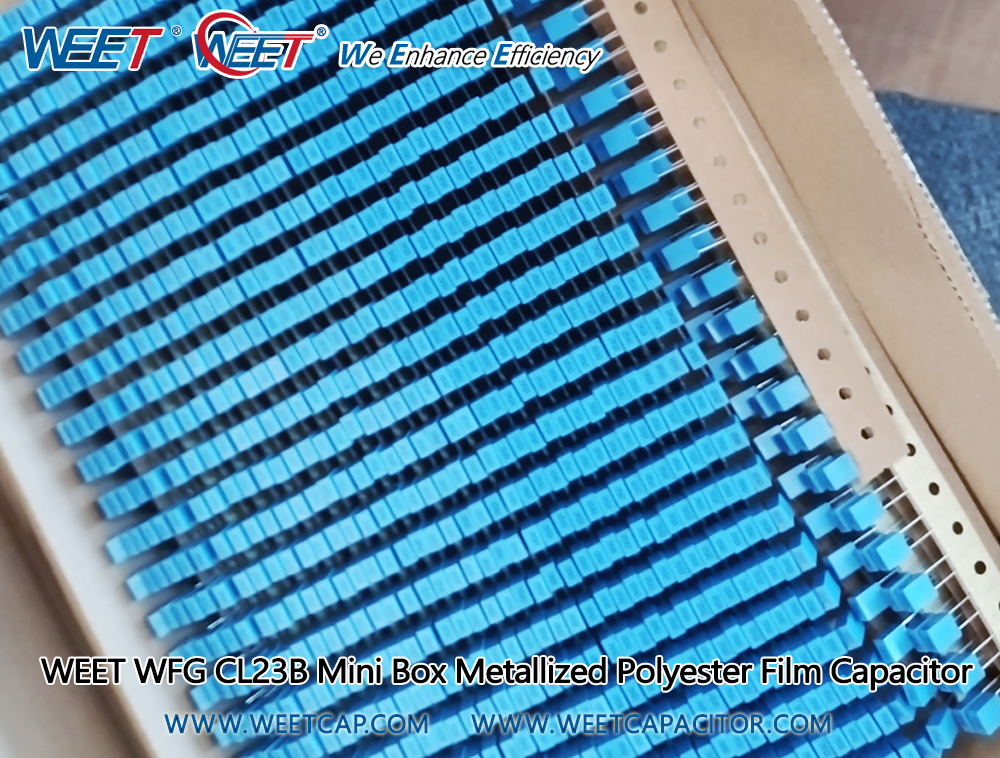

WEET WFG CL23B Mini Box Metallized Polyester Film Capacitor

Miniature size, Rounded by metalized polyester film, good self-healing effect

Moisture-proof, flame retardant, some small capacitance can be used in series film

Low dissipation factor, high voltage, box type by the epoxy potting

Good self-healing effect, good stability and reliability

Detailed Specifications

Operating Temperature -40℃~ +100℃ , 40/100/21
Rated Voltage(V.DC) 50V, 63V,100V, 250V, 400V, 630V.
Capacitance Range 0.001 ~ 2.2µF
Capacitance Tolerance ±5%, ±10%, ±20%
Insulation Resistance UR≤100V  C≤0.33µF  ≥3750MΩ
C>0.33µF ≥1250S
UR>100V C≤0.33µF  ≥7500MΩ
C>0.33µF ≥2500S
(20℃  100VDC  60SEC) P.S: T[s]=I.R.[MΩ]*CN [µF]
Dissipation Factor ≤0.01 (at 1KHz 20℃)

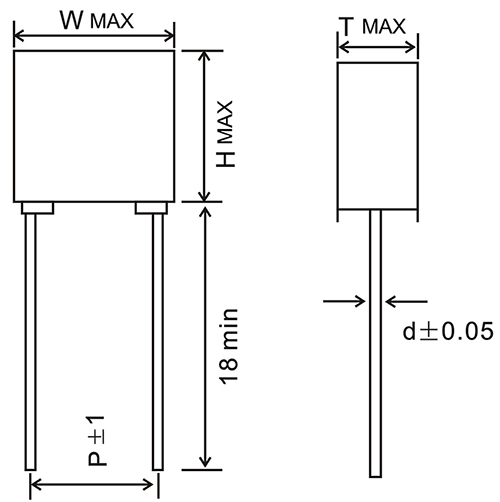

Product Drawing

WEET-WFG-Drawing

Main Applications

Identical appearance is applicable to all kinds of low dissipation and high precision capacitance circuits
Widely used for DC low pulse portion of occasions, typical applications are amplifier, TV, communications, power supply and  other products requiring high reliability circuit
