WEET Leaded Quartz Crystal WQC-HC49S

PDF Download

Features

WEET Leaded Quartz Crystal WQC-HC49S
Low profile resistance weld type Thru Hole quartz crystal
High reliability & Low cost
Tight stability & extended temperature
Pb-free and RoHS/Green compliant

Detailed Specifications

Holder Type HC-49S Lead Crystal
Frequency Range 3.200MHz – 48.000MHz
Operating Temperature Range -20℃ - +70℃ / -40℃ - +85℃
Storage Temperature Range -55℃ - +125℃
Drive Level 100uW typical
Load Capacitance 8pF-20pF
Frequency Tolerance ±10ppm
Shunt Capacitance 7.0pF Max
Insulation Resistance 500MΩmin.at DC 100V
Aging First Year ±3ppm/ year Maximum

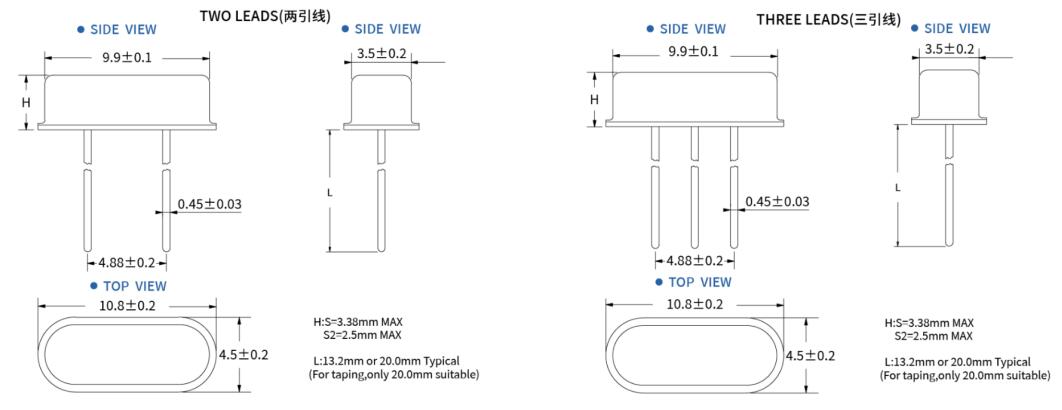

Product Drawing

Main Applications

This quartz crystal unit is commonly utilized in UPS, computer, embedded system, security equipment, multimedia player, electromechanical device, vehicle-mounted device and Small household appliance and so on

Cross Reference

WEET Product Name Kyocera Murata Crystek IQD Frequency Products Comtec Crystals Transko Rakon ABRACON Diodes Incorporated / SaRonix-eCera / Pericom PETERMANN-TECHNIK
WEET-Leaded-Quartz-Crystal-WQC-HC49S CYS HC49/4H HC49S HC49/S QEHC49H3 ABL, ABL2
WEET-SMD-Quartz-Crystal-WQC-HC49SMD CYSD HC49/4HSMX HC49SM HC49/SMD, UM/SMD QESM49H2 / H32 ABM8 HC-49/US-SMD
WEET-SMD-Quartz-Crystal-WQC-SMD3225 CX3225SB XRCJK (TSS-3225J), XRCJH (TAS-3225J) CSX3 CFPX-180 CM3225 CX32, CS32H RSX-8, QESM07 ABM8 FL, XR32 SMD03025
WEET-SMD-Quartz-Crystal-WQC-SMD5032 XRCLK (TSS-5032A) CSX2 CFPX-104 CM5032 CX53A, CS53A, QESM05 ABM3B FP, FY SMD0503
WEET-SMD-Oscillator-WQS-OSC3225 KC3225K CFPS-39, CFPS-40, CFPS-41 CXO3225T TP32, TSM32 QEN07 ASE FK, HX321 SPXO 3.2x2.5mm
WEET-SMD-Oscillator-WQS-OSC5032 KC5032K CFPS-36, CFPS-37, CFPS-67, CFPS-68, CFPS-69, CFPS-9 CXO5032T TCP53, TSM53, QEN05 ASFL1 FD, HX501 SPXO 5.0x3.2mm
WEET-SMD-Oscillator-WQS-OSC7050 KC7050K C18, C25, C32, C33 CFPS-32, CFPS-72, CFPS-73 CXO7050T TP75, TP75A, QEN101 ASV FN, HX701 SPXO 7.0x5.0mm
WEET-Differential-Crystal-Oscillator-WQS-3Z3225 IQXO-593 CXO3225PK TST32, TG32, TPSM3 AK3A HX322, NX322
WEET-Differential-Crystal-Oscillator-WQS-5Z5032 KC5032P IQXO-940, IQXO-941 CXO5032PK TGM5, TP53A, TPSM5 RXO5032M AK5 HX502, NX502
WEET-Differential-Crystal-Oscillator-WQS-7Z7050 KC7050G CCPD-023, CCPD-023, CCPD-033, CCPD-034 IQXO-620, IQXO-621, IQXO-942, IQXO-944 CXO7050PK TP75A, TPSM, TGM RXO7050M AK7 HX702, NX702
