WEET WUC 2.7V 3.0V Winding Radial Snap-in Screw Type Ultra Capacitors

PDF Download

Features

WEET WUC 2.7V 3.0V Winding Radial Snap-in Screw Type Ultra Capacitors
High energy, high power series
The capacity of 2.7V winding type series super capacitor is from 0.1F to 3000F.
3V series is available in temperatures ranging from -40 to +65 °C

Detailed Specifications

Rated voltage VR

2.7V

3.0V

Surge voltage

2.85V

3.15V

Capacity range

0.1F~3000F

1F~500F

Operating temperature range

-40~ +70℃

-40~ +65℃


Product life

Normal temperature cycle life:25℃, 1 million cycles between VR and 1/2VR , Capacity attenuation≤30%, ESR change≤4 times.

High temperature endurance life:Maximum temperature retention VR,1000 hours.Capacity attenuation≤ 30%, ESR change≤4 times.

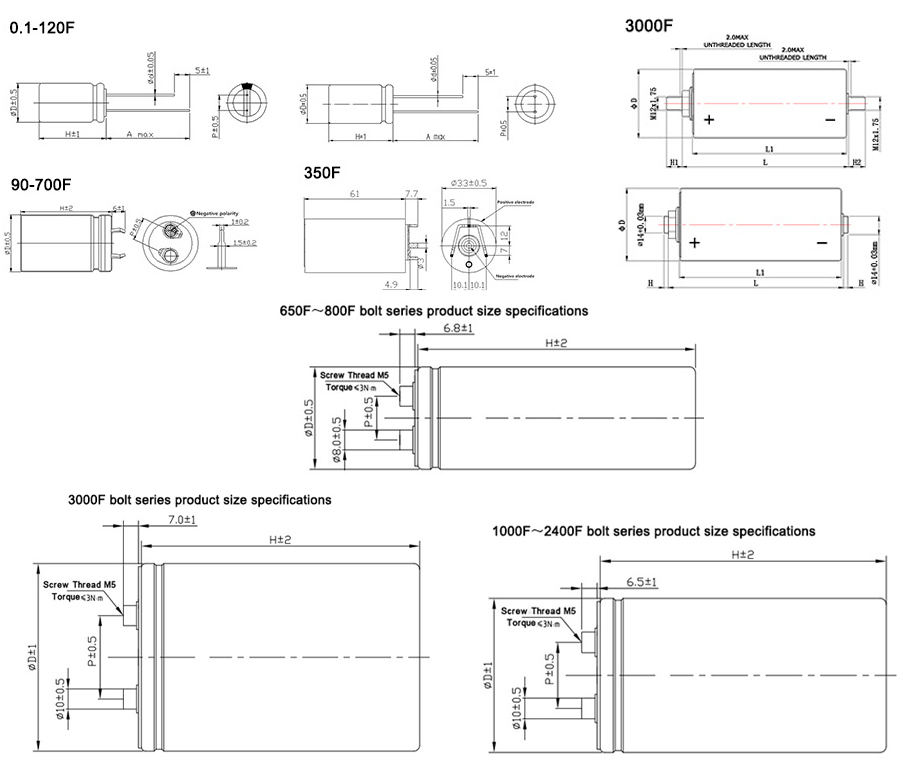

Product Drawing

WEET-WUC-Drawing

Main Applications

0.1F~3000F 2.7V Ultra capacitor is widely in RAM, detonator, car recorder, smart meter and electric meter.
3.0V Ultra capacitor can be used in water meter, electricity meter, gas meter, controller, vacuum switch, digital camera, motor drive and clock circuit.
