WEET WMM 20uF 50V Non Polarized Low Loss low DF BIPOLAR CAPACITOR

PDF Download

Features

WEET WMM 20uF 50V Non Polarized Low Loss low DF BIPOLAR CAPACITOR
WEET WMM 20uF 50V Non Polarized Low Loss low DF BIPOLAR CAPACITOR
Low Dissipation Factor MAX 5% at 1KHz,Bi-Polarized,105℃ 1000 hours

Detailed Specifications

Operating Temperature: -40℃~+105℃
Rated Voltage: 50V, 100V.DC
Leakage Current: MAX. 0.03CV + 3μA After 5 minutes application of rated working voltage
Capacitance Range: 1uF ~ 150uF
Capacitance Tolerance: ±10%
Dissipation Factor: MAX 5% at 1KHz  (Other Dissipation Factor 3%, 4%, 6%, 7%, 8%, 9%, 10%, 12% are available on request)

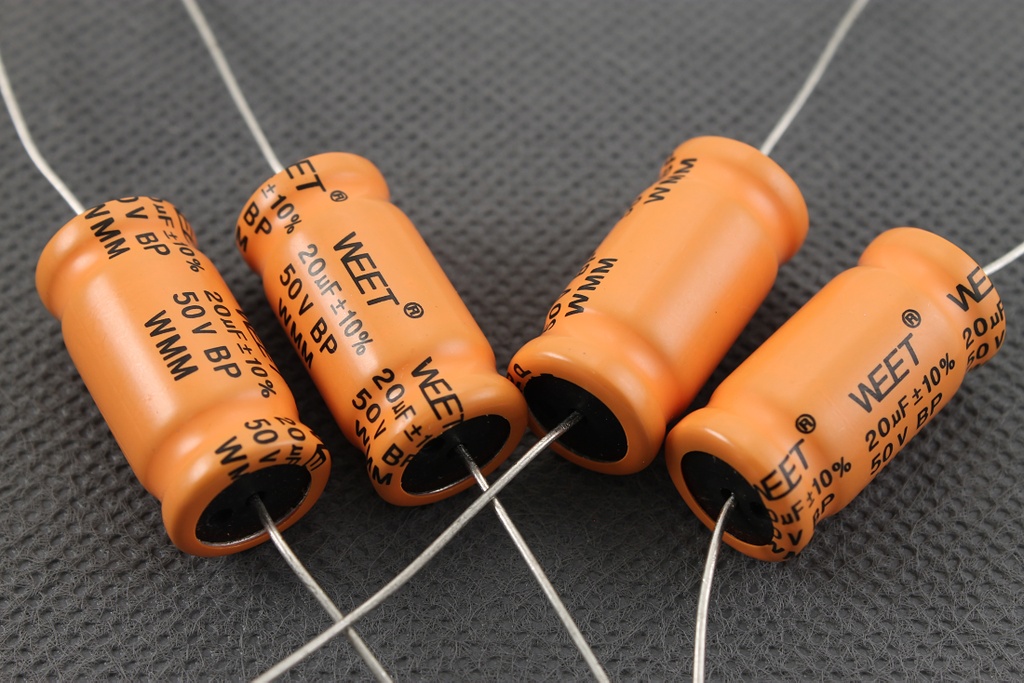

Product Picture

WEET WMM 20uF 50V Non Polarized Low Loss low DF BIPOLAR CAPACITOR

Main Applications

Specially produced for Cross-Over Networks with high fidelity audio system.Product mainly used in Audio Converters and Dividers (partials), Audio amp, Automotive Electronics Products, speaker and so on

Cross Reference

Popular Items cross reference to Visaton brand.

https://www.visaton.de/en/products/accessories/crossover-parts/electrolytic-capacitors


" I received all items in perfect condition a week ago. I did some tests on WMM series and they perform very well, much better than the Visaton brand."

--- Comment by Stanislav Nadelyaev from Russia

WEET WMM 20uF 50V Non Polarized Low Loss low DF BIPOLAR CAPACITOR
