WEET WMN 470uF 50V 1000H 105C Low DF Ecap Bipolar Kondensator

PDF Download

Features

WEET WMN 470uF 50V 1000H 105C Low DF Ecap Bipolar Kondensator
Low Dissipation Factor, MAX 5% at 120Hz, Bi-Polarized,105℃ 1000 hours
Specially produced for Cross-Over Networks with high fidelity audio system
High-quality crossover non-polar aluminum electrolytic capacitors
Product mainly used: audio converters and dividers (partials), Audio amp, automotive electronics products, speaker.

Detailed Specifications

Operating Temperature: -40℃~+105℃
Rated Voltage: 50V, 100V.DC
Leakage Current: MAX. 0.03CV + 3μA After 5 minutes application of rated working voltage
Capacitance Range: 47uF ~ 1000uF
Capacitance Tolerance: ±10%
Dissipation Factor: MAX 5% at 120Hz (Other Dissipation Factor 3%, 4%,  5%, 6%, 7%, 8%, 9%, 12% are available on request)

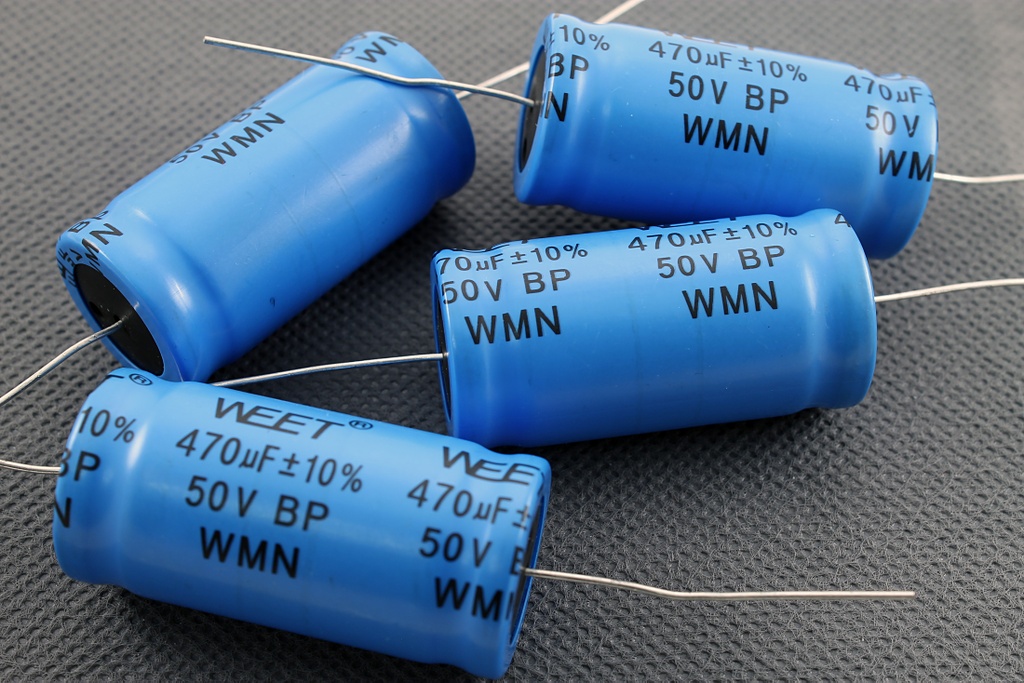

Product Picture

WEET WMN 470uF 50V 1000H 105C Low DF Ecap Bipolar Kondensator

Main Applications

Product mainly used: audio converters and dividers (partials), Audio amp, automotive electronics products, speaker.

Cross Reference

Popular Items cross reference to Visaton brand.

https://www.visaton.de/en/products/accessories/crossover-parts/electrolytic-capacitors


" I received all items in perfect condition a week ago. I did some tests on WMM series and they perform very well, much better than the Visaton brand."

 --- Comment by Stanislav Nadelyaev from Russia

WEET WMM 1000H 105°C, DF at Max 5% 1KHz BP Axial Ecap
15uF ±10% 50V OD:L: 13*27mm 82uF ±10% 50V OD:L: 16*34mm
22uF ±10% 50V OD:L: 13*27mm 100uF ±10% 50V OD:L: 16*34mm
33uF ±10% 50V OD:L: 13*31mm 150uF ±10% 50V OD:L: 16*43mm
47uF ±10% 50V OD:L: 13*31mm 220uF ±10% 50V OD:L: 18*44mm
68uF ±10% 50V OD:L: 16*34mm
WEET WMN 1000H 105°C, DF at Max 5% 120Hz BP Axial Ecap
330uF ±10% 50V OD:L: 18*44mm 470uF ±10% 50V OD:L: 22*45mm

WEET-WMN-330uF-50V-Cross-Visaton-Speaker-Driver-Capacitors-Manufacturer
