WEET WIC AWG 12 Air Cored Copper Foil Coils Crossover Inductor Replace to Cross Coil

PDF Download

Features

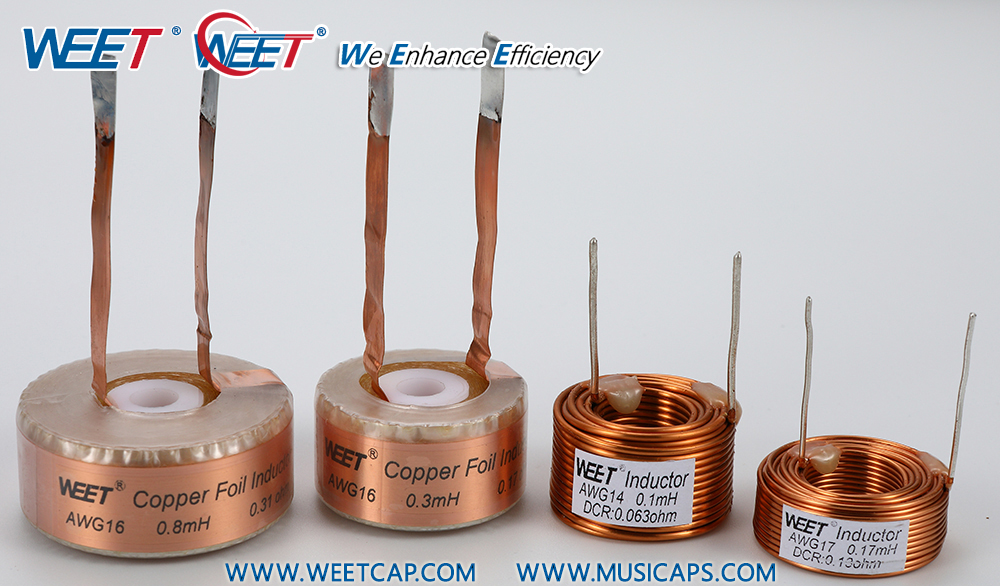

WEET WIC AWG 12 Air Cored Copper Foil Coils Crossover Inductor Replace to Cross Coil
Power type audio inductance. Suitable for bypass circuits
Has good inductance and very low distortion characteristics
Effectively improve the bass strength, reduce vibration effect distortion
Suitable for working in high-frequency circuits

Detailed Specifications

There are 5 wire sizes available with the following range of values, we usually do OEM for customers.
18 AWG, 16 AWG, 14 AWG, 12 AWG, 10 AWG,

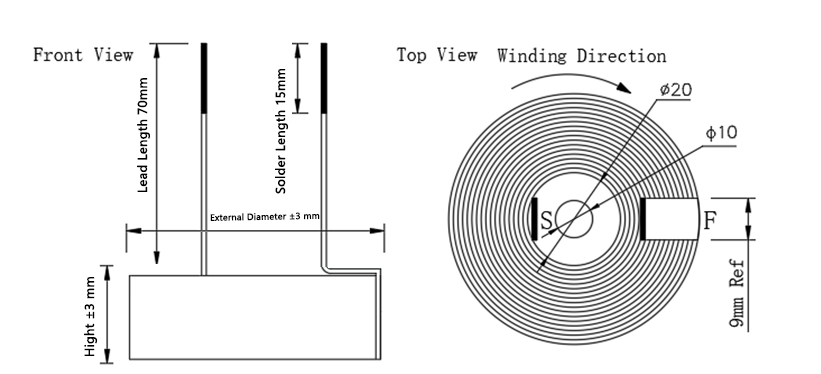

Product Drawing

WIC-12-1.6

Main Applications

Cross Reference

WEET PN WEET PN WEET PN
WIC-14-0.10 WIC-12-0.10 WIC-16-0.10
WIC-14-0.12 WIC-12-0.12 WIC-16-0.12
WIC-14-0.15 WIC-12-0.15 WIC-16-0.15
WIC-14-0.18 WIC-12-0.18 WIC-16-0.18
WIC-14-0.22 WIC-12-0.22 WIC-16-0.22
WIC-14-0.27 WIC-12-0.27 WIC-16-0.27
WIC-14-0.33 WIC-12-0.33 WIC-16-0.33
WIC-14-0.39 WIC-12-0.39 WIC-16-0.39
WIC-14-0.47 WIC-12-0.47 WIC-16-0.47
WIC-14-0.56 WIC-12-0.56 WIC-16-0.56
WIC-14-0.68 WIC-12-0.68 WIC-16-0.68
WIC-14-0.82 WIC-12-0.82 WIC-16-0.82
WIC-14-1.0 WIC-12-1.0 WIC-16-1.0
WIC-14-1.2 WIC-12-1.2 WIC-16-1.25
WIC-14-1.5 WIC-12-1.5 WIC-16-1.5
WIC-14-1.8 WIC-12-1.8 WIC-16-1.8
WIC-14-2.0 WIC-12-2.2 WIC-16-2.2
WIC-14-2.2 WIC-12-2.7 WIC-16-2.7
WIC-14-2.7 WIC-12-3.3 WIC-16-3.0
WIC-14-3.3 WIC-12-3.9 WIC-16-3.3
WIC-14-3.9 WIC-12-4.7 WIC-16-3.9
WIC-14-4.7 WIC-12-5.6 WIC-16-4.7
WIC-14-5.6 WIC-12-6.75 WIC-16-5.6
WIC-14-6.8 WIC-12-8.2 WIC-16-6.8
WIC-14-8.2 WIC-12-8.5 WIC-16-8.2
