WEET WMC MKP CBB19 Metallized Polypropylene Film Capacitor Axial and Round

PDF Download

Features

WEET WMC MKP CBB19 Metallized Polypropylene Film Capacitor Axial and Round

WEET WMC CBB19 axial capacitor is made of metallized polypropylene film as the dielectric and electrode, with overlapping electrode structure at both ends, vacuum plating thin metal as the electrode,
High-purity and large-diameter copper oxide tin coated welding at both ends as the lead, wrapped with flame retardant tape and sealed with epoxy resin.
It has excellent electrical performance, high reliability, high temperature resistance, small volume, large capacity and good self-healing performance.
High frequency extension is good, delicate and supple, Low frequency diving is deep, clean, full, elastic and strong.
If distortion is very small, transparent and warm, human voice is friendly and natural, thick, magnetic, no exaggeration and nasal sound, Good resolution, rich details, and small signals can be clearly replayed

Detailed Specifications

Operating Temperature:

-55℃~ +100℃
Rated Voltage: 250V, 400V, 630V, 1000V, 1250V.DC
Withstand Voltage: 1.6UR 2s (1.5UR 5s)
Capacitance Range: 0.047 ~ 56μF

Capacitance Tolerance:

±3%, ±5%, ±10%

Insulation Resistance:

C≤0.33μF ≥50000MΩ,
C>0.33μF ≥15000S, VR>100V, ≥5000S
Dissipation Factor: ≤0.0020

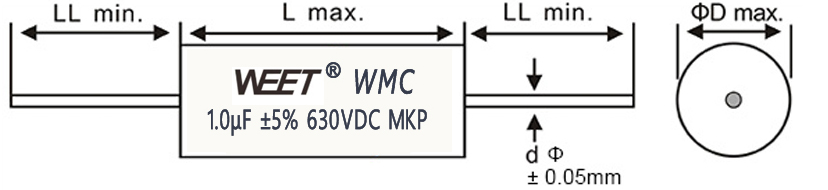

Product Drawing

WEET-WMC-Drawing

Main Applications

It is widely used in AC and DC circuits such as instruments, meters and household appliances. Highly used in frequency division circuits of sound systems, as well as high-frequency, DC, AC and pulse circuits

Cross Reference

WEET audio capacitors can replace ERSE, Mundorf - MCAP MKP, Jantzen Audio, Mallory, BENNIC, SCR / SOLEN, Auricap, INTERTECHNIK, Ampohm audio series.

WMC: The WMC is a compact, inexpensive metallised polypropylene (MKP) type capacitor, and have slightly better performance than metallised polyester types.
--- From Mr Stefan Whatcott, United Kingdom
