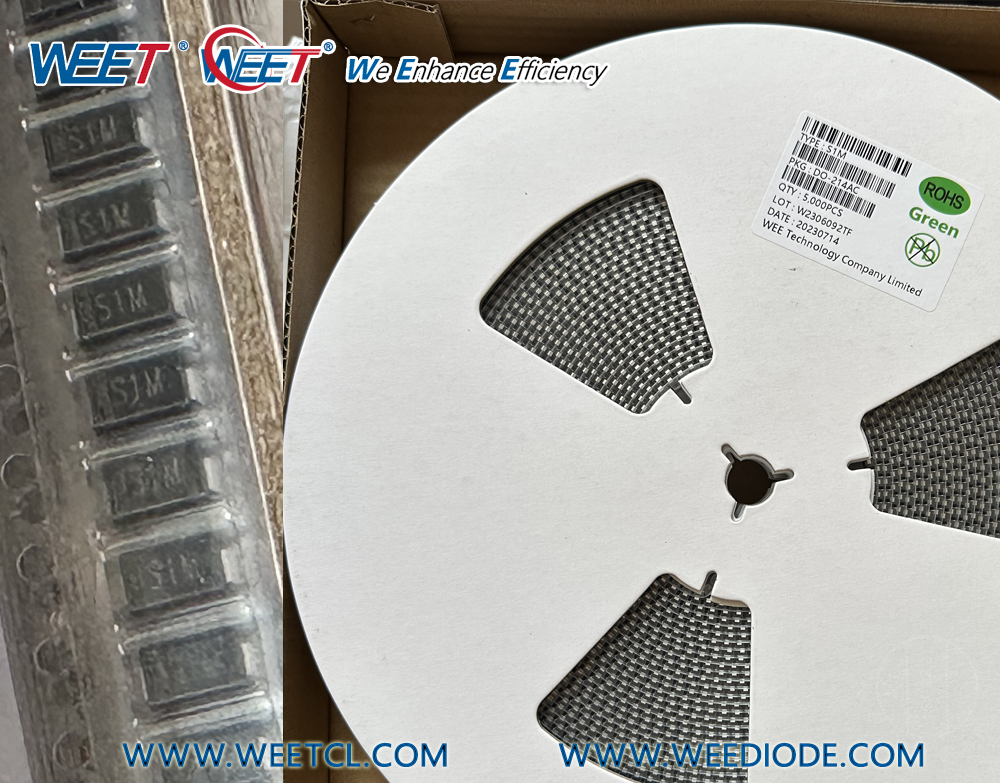

WEET SMA(DO-214AC) S1A THRU S1Y (S1A, S1B, S1D, S1G, S1J, S1K, S1M, S1T, S1W, S1X, S1Y) General Purpose Plastic Rectifier

PDF Download

Features

WEET SMA(DO-214AC) S1A THRU S1Y (S1A, S1B, S1D, S1G, S1J, S1K, S1M, S1T, S1W, S1X, S1Y) General Purpose Plastic Rectifier
VOLTAGE RANGE 50 to 2000 Volts
CURRENT 1.0 Ampere
For surface mounted applications
Glass passivated junction
Low profile package
Built-in strain relief, ideal for automated placement
Plastic package has underwrites laboratory flammability Classification 94V-0
High temperature soldering guaranteed:250℃/10 second at terminals

Detailed Specifications

MECHANICAL DATA
Case: JEDED SMA (DO-214AC) molded plastic
Terminals: Plated axial lead solderable per MIL-STD-750,method 2026
Polarity: Color band denotes cathode end
Mounting position: Any

Product Drawing

Main Applications

Industrial:Motor Control,Smart Power Meter,Welder,Industrial Air Conditioning
Automotive:Electric Vehicle Charging Station, DC Converter, Switching, Inverter, Control/Monitor
Computing:Input Stage Rectification, Transient Protection, ESD Protection, DC/DC Power, Camera Motor Drive
Aerospace:Cockpit Electronics, Engine Systems, Actuation Systems, Communications, Passenger Cabin Systems
Medical:Hearing Aid, Glucometer, Electrocardiograph, Patient Monitor, Supervisory, Ultrasound Imaging
LED Lighting:LED Street Lamp, Compact Fluorescent Lamp (CFL) , Rice cooker, Garden Lighting, LCD, Backlighting
Consumer:SMPS, Uninterruptable Power Supply, ORing Diode Function, Application_Low Voltage Power
Power Supply:SMPS, Uninterruptable Power Supply, ORing Diode Function, Application_Low Voltage Power
Alternative Energy:Power Bank, Smartphone, Tablet, Wearable, Wireless Headset, Solar Panel, Solar Inverter

Cross Reference

We are glad to inform you that WEET Diodes and Bridge Rectifiers Cross Reference to PANJIT Taiwan Semiconductor GI MOTOROLA IR FUJI FAGOR LITE-ON .
Fast lead time and stock offer. thank you.Please download from below link for more details, thank you.
https://www.weetcl.com/Cross-Reference/
