WEET WTP 3006 0.75W 19mm Rectangular Trimming Potentiometer

PDF Download

Features

WEET WTP 3006 0.75W 19mm Rectangular Trimming Potentiometer
Multiturn/ Cermet/ Industrial/ Sealed.
3 Terminal Styles.

Detailed Specifications

Power Rating (300volts max) 0.75W@70℃,0W@125℃
Temperature Range -55℃ ~ +125℃
Temperature Coefficient ±250x10-6/℃ (±100ppm/℃ on request)
Temperature Variation -55℃,30min, +125℃ 30min, 5 cycles ΔR≤±2%R.Δ(Uab/Uac)≤ ±2%R
Vibration 10 – 500Hz, 0.75mm, 6h, ΔR≤±1%R,Δ(Uab/Uac)≤ ±2%R
Collision 390m/s²,4000cycles, ΔR≤1%R
Electrical Endurance at 70℃ 0.75W@70℃1000h, ΔR≤±(5%R+0.1Ω), CRV≤±3%R or 5Ω(whichever is larger)
Rotational Life 200 cycles, ΔR≤±(10%R+0.5 Ω), CRV≤±3%R or 5Ω (whichever is larger)

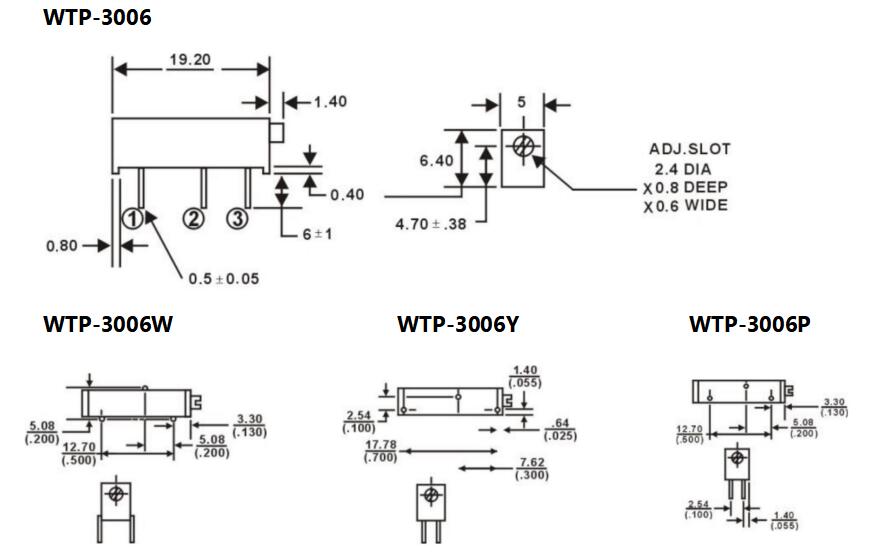

Product Drawing

Main Applications

Military Radios,Control Systems, Radar Systems,Analytical Equipment, Transmission Equipment,Avionics, Laser Altimeters, Power Supplies,Base Stations, Satellite Systems, Portable/Handheld Radios, GPS Navigation, Set-Top Boxes, Sensors, Relays, Laser Diode Drivers, CCTV Cameras, Automated Gates/Doors, Fire Alarms, Metal Detectors, Fluid Measurements, Smoke Detectors, Industrial/Graphic Printers, RFID Systems, Proximity Sensors, Bar Code Scanners, Oscilloscopes, Network Analyzers, Calibration Equipment, Radiation and X-ray Testers, Laser Scanners, Timers, Counters, Power Supplies,Scanners, Medical Meters, Communication Equipment, Temperature andRespiratory Monitors, Blood Chemical Analyzers, Medical Diagnostic Equipment, Mixing Consoles, Sound Processors, Electric Guitars, Instrument Amplifiers, Keyboards, Sound Recording Equipment, Video Editing Stations

Cross Reference

Cross BOURNS Murata B.I. (Beckman, TT Electronics) Tocos Vishay
3006 NA 89 RJC097 T18 / 43
