WEET WTP-3590 Rotary Metal Wire Wound Precision Trimming Potentiometer

PDF Download

Features

WEET WTP-3590 Rotary Metal Wire Wound Precision Trimming Potentiometer
At room ambient: +25℃ nominal and 50% relative Humidity nominal, except as noted.
Consult manufacturer for complete specification details.
Multi-turn/ Round/ Wire Wound/Rotary Metal Shaft Styles

Detailed Specifications

Standard Resistance Range 100Ω - 100KΩ
Resistance Tolerance ±5%
Independent Linearity ±0.5%
Effective Electrical Travel ≥3600°-10°
Terminal Resistance ≤0.2%R or 5Ω
Noise ≤3% R or 3Ω
Insulation Resistance R≥1GΩ
Withstand Voltage 101.3kPa 710V, 8.5kPa 470V

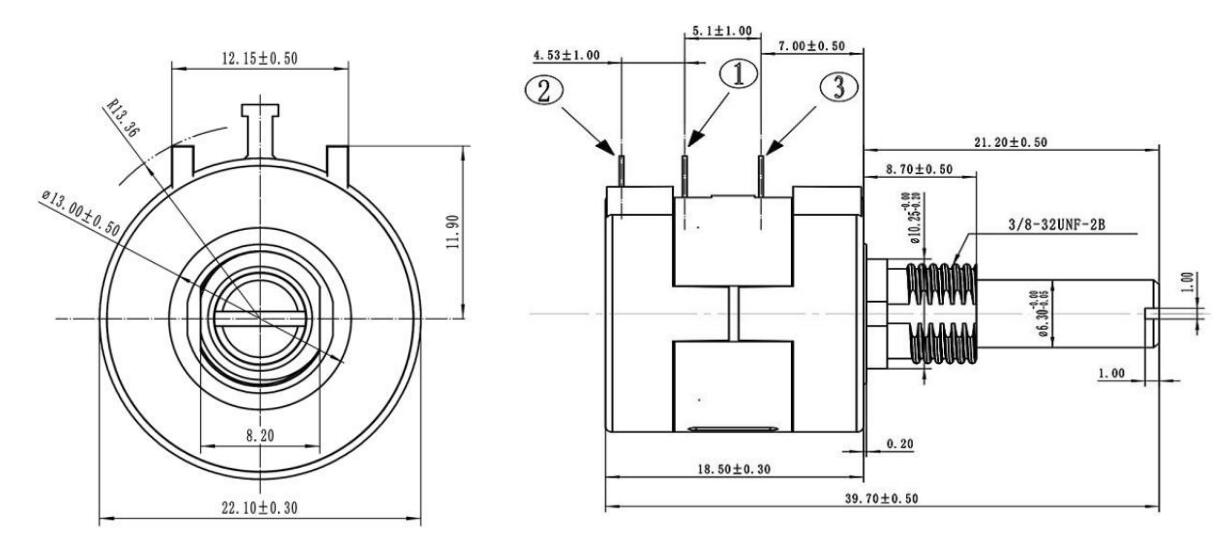

Product Drawing

Main Applications

Military Radios,Control Systems, Radar Systems,Analytical Equipment, Transmission Equipment,Avionics, Laser Altimeters, Power Supplies,Base Stations, Satellite Systems, Portable/Handheld Radios, GPS Navigation, Set-Top Boxes, Sensors, Relays, Laser Diode Drivers, CCTV Cameras, Automated Gates/Doors, Fire Alarms, Metal Detectors, Fluid Measurements, Smoke Detectors, Industrial/Graphic Printers, RFID Systems, Proximity Sensors, Bar Code Scanners, Oscilloscopes, Network Analyzers, Calibration Equipment, Radiation and X-ray Testers, Laser Scanners, Timers, Counters, Power Supplies,Scanners, Medical Meters, Communication Equipment, Temperature andRespiratory Monitors, Blood Chemical Analyzers, Medical Diagnostic Equipment, Mixing Consoles, Sound Processors, Electric Guitars, Instrument Amplifiers, Keyboards, Sound Recording Equipment, Video Editing Stations
