WEET WMH 5.6uF 100V Pure Aluminium Foil and Film High End Audiophile Capacitor

Features

WEET WMH MusiCaps are constructed using separate layers of premium foil and polypropylene films, rather than the vapor deposited metallized film used by most other manufacturers.
Winding: Aluminum foil spliced to polypropylene insulation film. (a layer of pure Aluminum foil and a layer of PP film).Separate layers of polypropylene film & conductive foil deliver superiors clarity of reproduction that metalized capacitors can not.
Top of the range pure aluminum foil capacitor, High Precise Capacitance ±3%. Very Low Dielectric absorption factor.Very Low Dissipation factor.Very Low ESR.Very Low Inductance

Detailed Specifications

Passive flammability	GB10191-88 IEC384-16
Operating temperature	-55℃～+85℃
Capacitance range	1~10uF
Capacitance tolerance	±3% 1KHz
Rated voltage	100V、200V.DC
Withstand voltage	1.6VR 5S
Dissipation factor	≤0.0005 1KHz
Insulate the electric resistance	CR≤0.33μF, I.R≥15,000MΩ
Insulate the electric resistance	CR>0.33μF, I.R≥5,000S
Leads Diameter	0.8 1.0 Tinned Pure Copper Wire

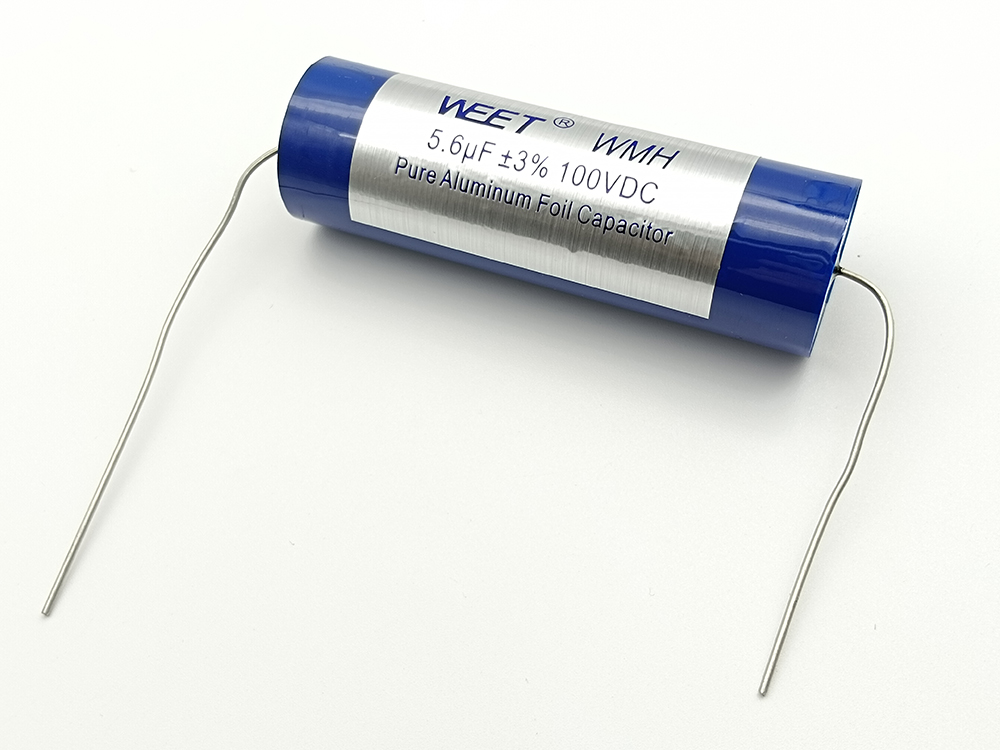

Product Picture

WEET WMH 5.6uF 100V Pure Aluminium Foil and Film High End Audiophile Capacitor

Main Applications

WEET audio capacitors can replace ERSE, Mundorf - MCAP MKP, Jantzen Audio, Mallory, BENNIC, SCR / SOLEN, Auricap, INTERTECHNIK, Ampohm audio series.

WMH can replace from those brands audio capacitors: like Mundorf, Jantzen, Auricap.A luxury capacitor designed especially for modern high-end tweeters and mid-range drivers
It is the most high grade audio capacitors in China, with Aluminum Foil and PP film, we are the only factory can produce such type audio capacitor.
